KG-12-V


DATA SHEET



Gas Engine KG-12-V

Electrical power 5,200 kW
Fuel input 10,600 kW
Efficiency 49.5 %
Exhaust gas mass flow 8.8 kg/s
Exhaust gas temperature 320°C
Generator voltage 6.3 / 10.5 / 11.0 kV
Exhaust heat 2.7 MW
Fuel type Natural Gas
Emissions

NOx: 200 ppm

Methan number >65
Performance at ISO-conditions without any losses

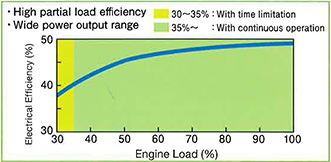

Performance Diagrams at standard conditions

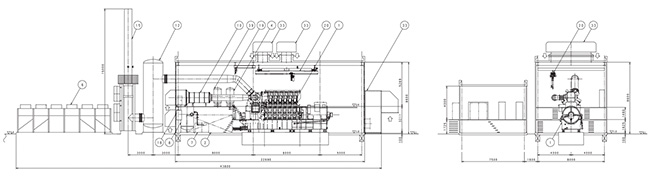

Typical Layout drawing for outdoor installation
